This guide covers deploying an MCP server from source code. Whether your code is in a public GitHub repository or you’ve written it yourself, the deployment process is the same. You can deploy both HTTP-based and stdio-based MCP servers.

If you’re new to deploying services on TrueFoundry, we recommend first going through the Deploy Your First Service guide to understand the basic deployment workflow.

Prerequisites

MCP server source code (in a GitHub repository or on your local machine)
A TrueFoundry workspace (Create workspace if you don’t have one)
If deploying from GitHub: repository integrated with TrueFoundry (see GitHub Integration Setup)
Understanding of whether your server uses HTTP/SSE or stdio communication

Writing Your Own MCP Server

If you’re writing your own MCP server, here are examples to get you started.

It’s recommended to write the HTTP-based servers since they are more secure and easier to deploy.

HTTP-Based Server (Python with FastMCP)

HTTP-based servers are easier to deploy and integrate. FastMCP is a Python framework for building HTTP MCP servers:

server.py

from fastmcp import FastMCP

mcp = FastMCP("Calculator MCP Server")

@mcp.tool
def add(a: float, b: float) -> float:
    """Add two numbers together"""
    return a + b

@mcp.tool
def subtract(a: float, b: float) -> float:
    """Subtract the second number from the first number"""
    return a - b

if __name__ == "__main__":
    mcp.run(transport="http", host="0.0.0.0", port=8000, path="/mcp")

requirements.txt:

fastmcp>=0.1.0

Repository Structure:

mcp-server/
├── server.py
├── requirements.txt
└── README.md

Testing Locally:Before deploying, test your server locally:

# Run your server
python server.py

# Test in another terminal
curl -X POST http://localhost:8000/mcp \
  -H "Content-Type: application/json" \
  -d '{"jsonrpc": "2.0", "id": 1, "method": "tools/list"}'

Stdio-Based Server (Python)

If you prefer stdio communication, you’ll need to implement the MCP protocol over stdin/stdout:

server.py

import sys
import json

def handle_request(request):
    """Handle MCP protocol requests"""
    method = request.get("method")
    request_id = request.get("id")

    if method == "tools/list":
        return {
            "jsonrpc": "2.0",
            "id": request_id,
            "result": {
                "tools": [
                    {
                        "name": "add",
                        "description": "Add two numbers together",
                        "inputSchema": {
                            "type": "object",
                            "properties": {
                                "a": {"type": "number", "description": "First number"},
                                "b": {"type": "number", "description": "Second number"}
                            },
                            "required": ["a", "b"]
                        }
                    },
                    {
                        "name": "subtract",
                        "description": "Subtract the second number from the first number",
                        "inputSchema": {
                            "type": "object",
                            "properties": {
                                "a": {"type": "number", "description": "First number"},
                                "b": {"type": "number", "description": "Second number"}
                            },
                            "required": ["a", "b"]
                        }
                    }
                ]
            }
        }
    elif method == "tools/call":
        # Execute tool
        tool_name = request["params"]["name"]
        args = request["params"]["arguments"]

        if tool_name == "add":
            result = args["a"] + args["b"]
        elif tool_name == "subtract":
            result = args["a"] - args["b"]
        else:
            return {
                "jsonrpc": "2.0",
                "id": request_id,
                "error": {"code": -32601, "message": "Method not found"}
            }

        return {
            "jsonrpc": "2.0",
            "id": request_id,
            "result": {
                "content": [{"type": "text", "text": str(result)}]
            }
        }
    else:
        return {
            "jsonrpc": "2.0",
            "id": request_id,
            "error": {"code": -32601, "message": "Method not found"}
        }

def main():
    """Main stdio loop"""
    for line in sys.stdin:
        try:
            request = json.loads(line.strip())
            response = handle_request(request)
            print(json.dumps(response))
            sys.stdout.flush()
        except Exception as e:
            error_response = {
                "jsonrpc": "2.0",
                "id": request.get("id") if 'request' in locals() else None,
                "error": {"code": -1, "message": str(e)}
            }
            print(json.dumps(error_response))
            sys.stdout.flush()

if __name__ == "__main__":
    main()

Repository Structure:

mcp-server/
├── server.py
├── Dockerfile
└── README.md

Dockerfile:

FROM python:3.11-slim

# Install mcp-proxy
RUN pip install mcp-proxy

# Copy server code
WORKDIR /app
COPY . .

# Run mcp-proxy wrapping the Python stdio server
CMD ["mcp-proxy", "--port", "8000", "--host", "0.0.0.0", "--server", "stream", "python", "server.py"]

Testing Locally:Before deploying, test your stdio server locally:

# Test stdio server
echo '{"jsonrpc": "2.0", "id": 1, "method": "tools/list"}' | python server.py

Determine Your Server Type

Before deploying, you need to identify whether your MCP server uses:

HTTP/SSE: The server exposes HTTP endpoints and can be accessed directly
Stdio: The server communicates through standard input/output (stdin/stdout)

Deployment Steps

The deployment process is the same whether your code is in a GitHub repository or on your local machine. The only difference is the source selection in the second step.

Navigate to Service Deployment

Log in to your TrueFoundry dashboard
Navigate to Deployments → New Deployment → Service
Select your workspace

Choose Your Source

From GitHub Repository
From Local Machine

Select Git Repo as the source
Choose your repository from the Repo URL dropdown
Set the Path to Build Context to the directory containing your MCP server code

Path to Build Context: This is the path to the directory in the GitHub repository that contains the code for your MCP server. If your MCP server is in the root of the repository, use "./". If it’s in a subdirectory like mcp-server/, use "./mcp-server/".

Deployment Configuration (from GitHub):

Source: Git Repo
Repo URL: https://github.com/your-org/your-repo
Path to Build Context: "./mcp-server/"
Path to requirements.txt: "./requirements.txt"
Python Version: 3.11
Command: python server.py
Port: 8000

Select Code From Laptop as the source
Follow the wizard to generate a deploy.py file
Place deploy.py in your project root
Run python deploy.py to deploy

Example deploy.py for HTTP Server:

deploy.py

import logging
from truefoundry.deploy import (
    Service, Build, LocalSource, PythonBuild,
    Port, Resources
)

logging.basicConfig(level=logging.INFO)

service = Service(
    name="my-custom-mcp-server",
    image=Build(
        build_source=LocalSource(project_root_path="./", local_build=True),
        build_spec=PythonBuild(
            build_context_path="./",
            command="python server.py",
            requirements_path="requirements.txt",
        ),
    ),
    ports=[
        Port(
            port=8000,
            protocol="TCP",
            expose=False,
            app_protocol="http",
        )
    ],
    env={
        "API_KEY": "tfy-secret://your-workspace:your-secret-group:API_KEY"
    },
    resources=Resources(
        cpu_request=0.5,
        cpu_limit=1,
        memory_request=1000,
        memory_limit=2000,
    ),
    replicas=1,
)

service.deploy(workspace_fqn="your-workspace-fqn")

Example deploy.py for Stdio Server:

deploy.py

import logging
from truefoundry.deploy import (
    Service, Build, LocalSource, DockerFileBuild,
    Port, Resources
)

logging.basicConfig(level=logging.INFO)

service = Service(
    name="my-custom-stdio-mcp-server",
    image=Build(
        build_source=LocalSource(project_root_path="./", local_build=True),
        build_spec=DockerFileBuild(
            dockerfile_path="./Dockerfile",
            build_context_path="./",
        ),
    ),
    ports=[
        Port(
            port=8000,
            protocol="TCP",
            expose=False,
            app_protocol="http",
        )
    ],
    env={
        "API_KEY": "tfy-secret://your-workspace:your-secret-group:API_KEY"
    },
    resources=Resources(
        cpu_request=0.5,
        cpu_limit=1,
        memory_request=1000,
        memory_limit=2000,
    ),
    replicas=1,
)

service.deploy(workspace_fqn="your-workspace-fqn")

Choose Build Method Based on Server Type

HTTP/SSE Server
Stdio Server

For HTTP-based servers, you can deploy directly without additional wrappers.

Option A: With Dockerfile (Recommended)

If you already have a Dockerfile in your repository:Example Configuration:

Path to Build Context: "./mcp-server/"
Path to Dockerfile: "./Dockerfile"
Command: python server.py

Example Dockerfile:

FROM python:3.11-slim

WORKDIR /app
COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt

COPY . .

CMD ["python", "server.py"]

Option B: Without Dockerfile (Python)

If you’re using Python without a Dockerfile:

Select Python Code (I don’t have Dockerfile)
Set Path to requirements.txt relative to the build context
Choose Python Version (e.g., 3.11)
Set Command to run your server

Example Configuration:

Path to Build Context: "./mcp-server/"
Path to requirements.txt: "./requirements.txt"
Python Version: 3.11
Command: python server.py

Complete Example (FastMCP HTTP Server): For the FastMCP server shown in “Writing Your Own MCP Server”, use:

Path to Build Context: "./mcp-server/" (or "./" if in root)
Path to requirements.txt: "./requirements.txt"
Python Version: 3.11
Command: python server.py
Port: 8000

For stdio-based servers, you need to wrap them with mcp-proxy to convert stdio communication to HTTP.

Understanding mcp-proxy

mcp-proxy is a tool that wraps stdio-based MCP servers and exposes them as HTTP endpoints. It acts as a bridge between the stdio protocol and HTTP.Installation:

# TypeScript version
npm install -g mcp-proxy

# Python version
pipx install mcp-proxy

Option A: With Dockerfile (Recommended)

Create a Dockerfile that installs mcp-proxy and wraps your stdio server:You can use the Dockerfile mentioned above to wrap the stdio server.Configuration:

Path to Build Context: "./mcp-server/" (or "./" if in root)
Path to Dockerfile: "./Dockerfile"
Command: (defined in Dockerfile CMD) (8000 in the example above)

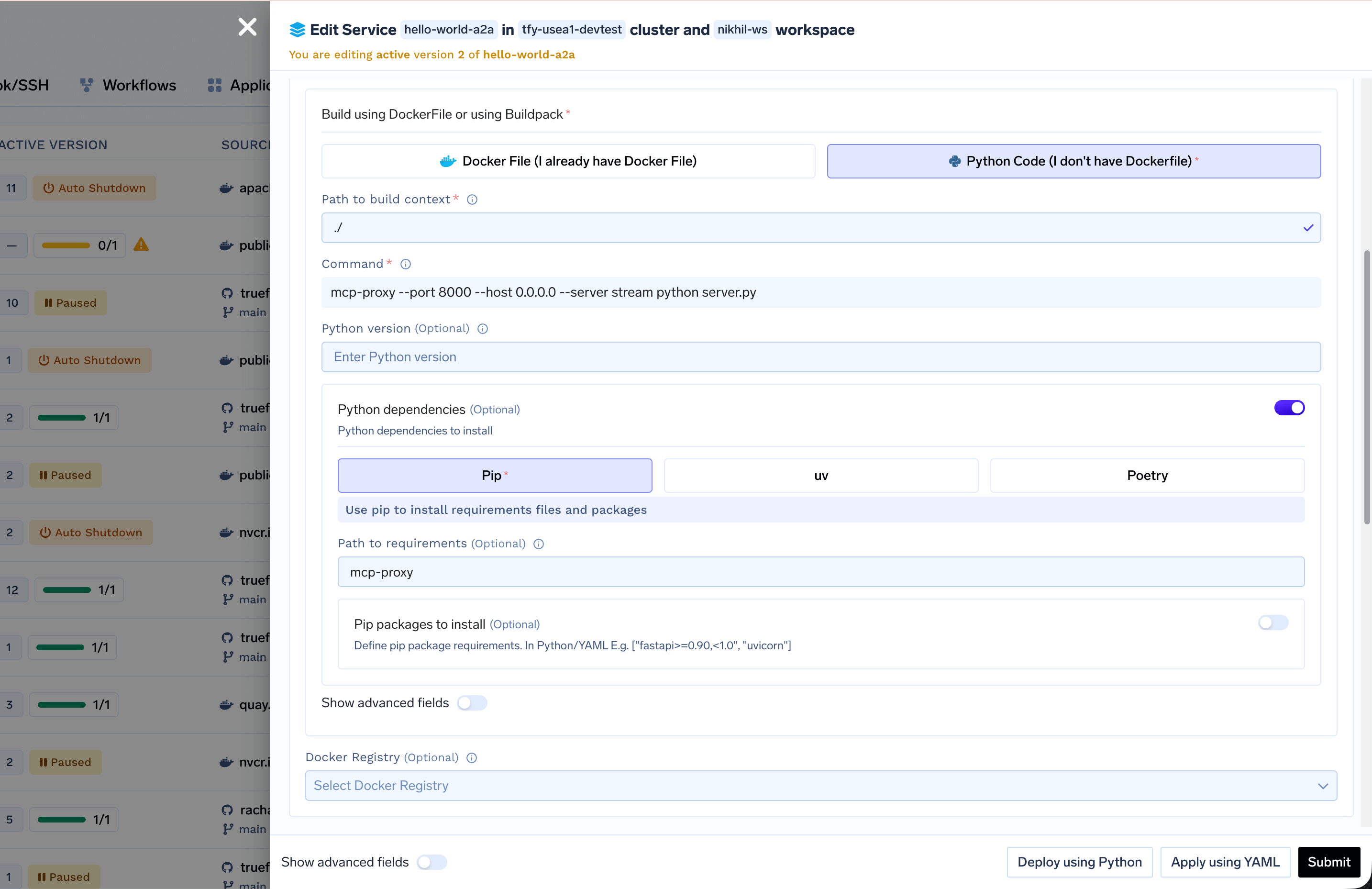

Option B: Python Build

If you don’t want to write a Dockerfile, you can use the Python Build option and provide mcp-proxy as a dependency.Configuration:

Path to Build Context: "./mcp-server/"
Path to requirements.txt: "./requirements.txt" (only if you have dependencies; if your server only uses standard library, you can skip this or create an empty file)
Python Version: 3.11
Command: mcp-proxy --port 8000 --host 0.0.0.0 --server stream python server.py

Configure Port

Click Add Port
Set Port to 8000 (or the port your server uses)
Set Protocol to TCP
Set App Protocol to http
Set Expose to false (the service will be accessible internally)
Optionally set a Host if you want a custom domain

Important: Make sure your MCP server binds to 0.0.0.0 and not localhost or 127.0.0.1 to be accessible within the cluster. This is commonly done via command line arguments like --host 0.0.0.0 or --bind 0.0.0.0.

Set Environment Variables and resources

Add any required environment variables in the Environment Variables section. For resources, if unsure, start with the default values and later change if needed.

For sensitive values, use TrueFoundry Secrets instead of plain environment variables.

Deploy

Click Submit to start the deployment. Monitor the deployment status until it shows DEPLOY_SUCCESS.

After clicking Submit, your deployment will be processed in a few seconds, and your service will be displayed as active (green) in the dashboard, indicating that it’s up and running. You can view all the information about your service, including logs and metrics, from the deployment dashboard.

Verify Deployment

After deployment:

Check the service status in the dashboard (should be green/running)
Note the service endpoint URL
Test the endpoint:

# For HTTP servers
curl http://your-service-endpoint:8000/mcp

# For stdio servers (wrapped with mcp-proxy)
curl http://your-service-endpoint:8000

The endpoint should respond with MCP protocol messages over HTTP.

mcp-proxy Command Options

For stdio servers, the mcp-proxy command supports several options:

mcp-proxy --port 8000 --host 0.0.0.0 --server stream <your-stdio-command>

Common options:

--port: Port to expose HTTP endpoint (default: 8000)
--host: Host to bind to (use 0.0.0.0 for TrueFoundry)
--server stream: Use streaming mode for MCP protocol
--debug: Enable debug logging

Best Practices

Error Handling

Always implement proper error handling:

@mcp.tool
def safe_tool(param: str) -> str:
    """Tool with error handling"""
    try:
        # Your logic
        return result
    except Exception as e:
        raise ValueError(f"Tool execution failed: {str(e)}")

Input Validation

Validate inputs before processing:

@mcp.tool
def validated_tool(url: str) -> dict:
    """Tool with input validation"""
    if not url.startswith(('http://', 'https://')):
        raise ValueError("URL must start with http:// or https://")
    # Process valid URL
    return {"status": "success"}

Logging

Add logging for debugging and monitoring:

import logging

logging.basicConfig(level=logging.INFO)
logger = logging.getLogger(__name__)

@mcp.tool
def logged_tool(param: str) -> str:
    """Tool with logging"""
    logger.info(f"Tool called with param: {param}")
    # Your logic
    logger.info("Tool execution completed")
    return result

Troubleshooting

Service won't start

Check that the command is correct
Verify the port matches your server configuration
Ensure the server binds to 0.0.0.0, not localhost
Check service logs in the TrueFoundry dashboard

Cannot access endpoint

Verify the port is correctly configured
Check that the service is running (green status)
Ensure the endpoint path matches your server configuration
For internal access, use the cluster-internal URL

mcp-proxy not found (stdio servers)

Ensure mcp-proxy is installed in the Docker image
Check that the installation command runs successfully
Verify the PATH includes npm global bin directory

Stdio server not starting

Verify the command to run your stdio server is correct
Check that all dependencies are installed
Review service logs for startup errors
Ensure the stdio server reads from stdin and writes to stdout

Build fails

Verify the repository URL and path are correct (for GitHub)
Check that requirements.txt exists and is valid (for Python)
Ensure Python version matches your code requirements
Review build logs in the deployment dashboard

Tools not appearing

Verify tools/list method returns correct format
Check tool schemas are valid JSON Schema
Ensure the MCP protocol version matches
Test the endpoint directly with curl

Tool execution fails

Check error handling in tool implementations
Verify input validation is working
Review service logs for detailed errors
Test tools individually using curl or the playground

Getting Started

Train and Deploy Models

Service Deployment

Job Deployment

LLM Deployment

LLM Finetuning

MCP Server Deployment

Workflow Deployment

Async Service Deployment

Volumes

ML Repository

LLM Tracing

Advanced Features

Deploy MCP Server From Code

Prerequisites

Writing Your Own MCP Server

Determine Your Server Type

Deployment Steps

Option A: With Dockerfile (Recommended)

Option B: Without Dockerfile (Python)

Understanding mcp-proxy

Option A: With Dockerfile (Recommended)

Option B: Python Build

mcp-proxy Command Options

Best Practices

Troubleshooting

Getting Started

Train and Deploy Models

Service Deployment

Job Deployment

LLM Deployment

LLM Finetuning

MCP Server Deployment

Workflow Deployment

Async Service Deployment

Volumes

ML Repository

LLM Tracing

Advanced Features

​Prerequisites

​Writing Your Own MCP Server

​Determine Your Server Type

​Deployment Steps

​Option A: With Dockerfile (Recommended)

​Option B: Without Dockerfile (Python)

​Understanding mcp-proxy

​Option A: With Dockerfile (Recommended)

​Option B: Python Build

​mcp-proxy Command Options

​Best Practices

​Troubleshooting

Prerequisites

Writing Your Own MCP Server

Determine Your Server Type

Deployment Steps

Option A: With Dockerfile (Recommended)

Option B: Without Dockerfile (Python)

Understanding mcp-proxy

Option A: With Dockerfile (Recommended)

Option B: Python Build

mcp-proxy Command Options

Best Practices

Troubleshooting
