This guide demonstrates how to write a MCP server, add OAuth based authentication to it using Azure Entra ID (formerly Azure AD) as the identity provider and then integrate it with the Truefoundry gateway. The setup below explains both the user authentication and machine-to-machine authentication scenarios:

User Authentication: Authenticate specific users through the AI Gateway using the Authorization Code flow with refresh tokens
Machine-to-Machine Authentication: Enable programmatic access without user interaction using the Client Credentials grant flow

The entire code for the steps described below can be found in this Github link: https://github.com/truefoundry/getting-started-examples/tree/main/calculator-oauth-mcp-server

Guide to creating the MCP server and adding OAuth

Write a basic MCP Server and test it locally

Let’s start by writing a basic MCP server that provides a get_me tool.

server.py

from fastmcp import FastMCP

mcp = FastMCP("Demo 🚀")

@mcp.tool
def add(a: int, b: int) -> int:
    """Add two numbers"""
    return a + b

@mcp.tool
def subtract(a: int, b: int) -> int:
    """Subtract two numbers"""
    return a - b

if __name__ == "__main__":
    mcp.run(transport="streamable-http", stateless_http=True)

Run the server locally:

python server.py

Your MCP server will be available at http://localhost:8000/mcp. Test the server using this Python script:

test.py

import asyncio
from fastmcp import Client

async def main():
    async with Client("http://127.0.0.1:8000/mcp") as client:
        tools = await client.list_tools()
        print(tools)
        result = await client.call_tool(
            name="add",
            arguments={"a": 1, "b": 2}
        )
        print(result)

asyncio.run(main())

This MCP server is running without any authentication. We want to enable OAuth authentication on the MCP server. To enable OAuth, we will be creating an Azure App Registration in the next step which will be used to authenticate users and applications.

Create an App Registration for the MCP Server (Resource/API)

This app registration represents your MCP server as a protected resource. It will define what permissions (scopes) are available for your API.

Instructions to create the App Registration

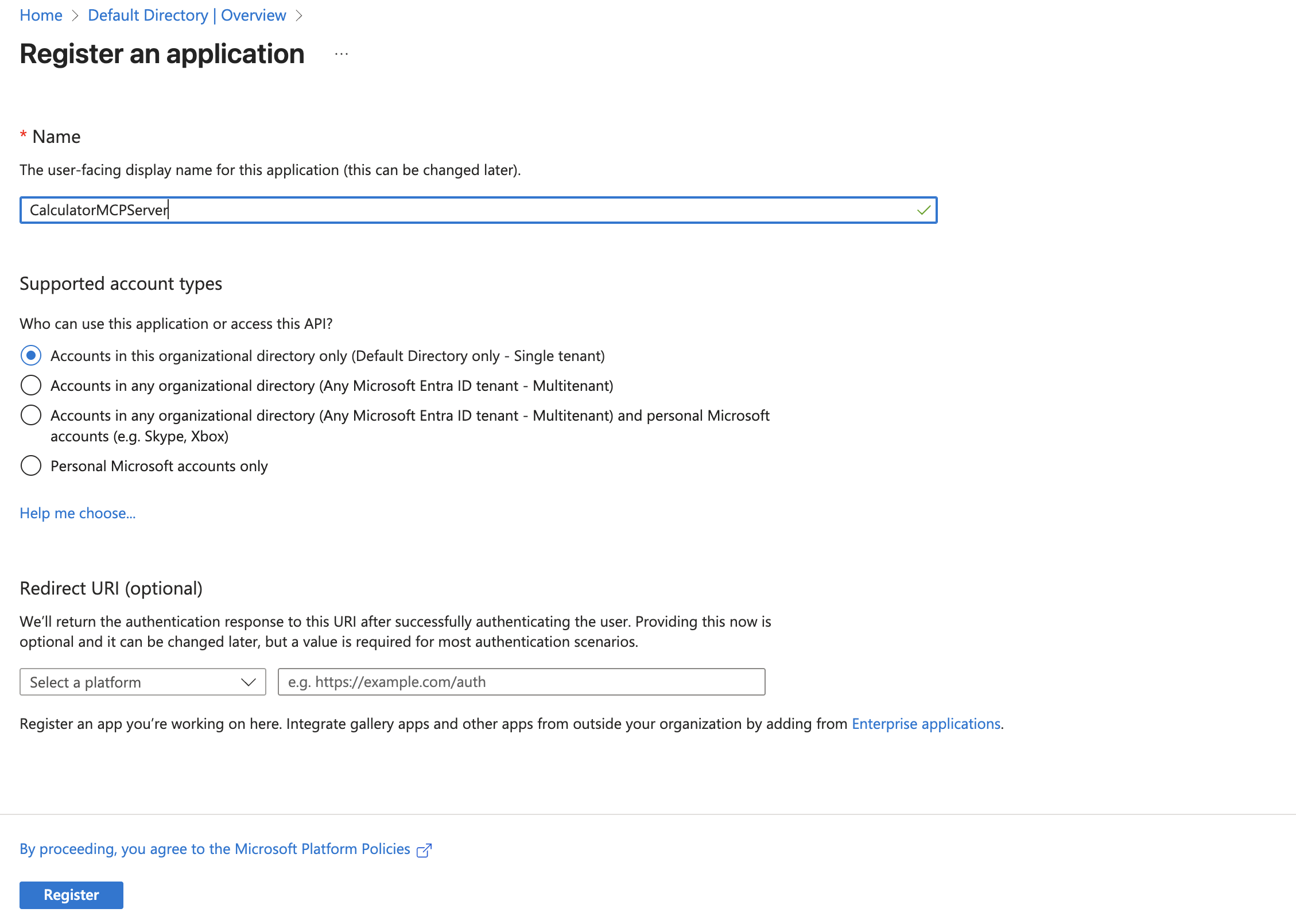

Navigate to Azure Portal > Microsoft Entra ID > App registrations
Click New registration
Configure:
- Name: CalculatorMCPServer
- Supported account types: Choose based on your needs (typically “Accounts in this organizational directory only”)
- Redirect URI: Leave empty for now (this is the API, not the client)

Click Register
Note down the following from the Overview page:
- Application (client) ID - This will be used as part of your audience
- Directory (tenant) ID - Your Azure AD tenant ID

Expose an API and Define Scopes

Now we’ll configure the app registration to expose an API with custom scopes that clients can request.

Instructions to expose API and create scopes

In your CalculatorMCPServer app registration, go to Expose an API

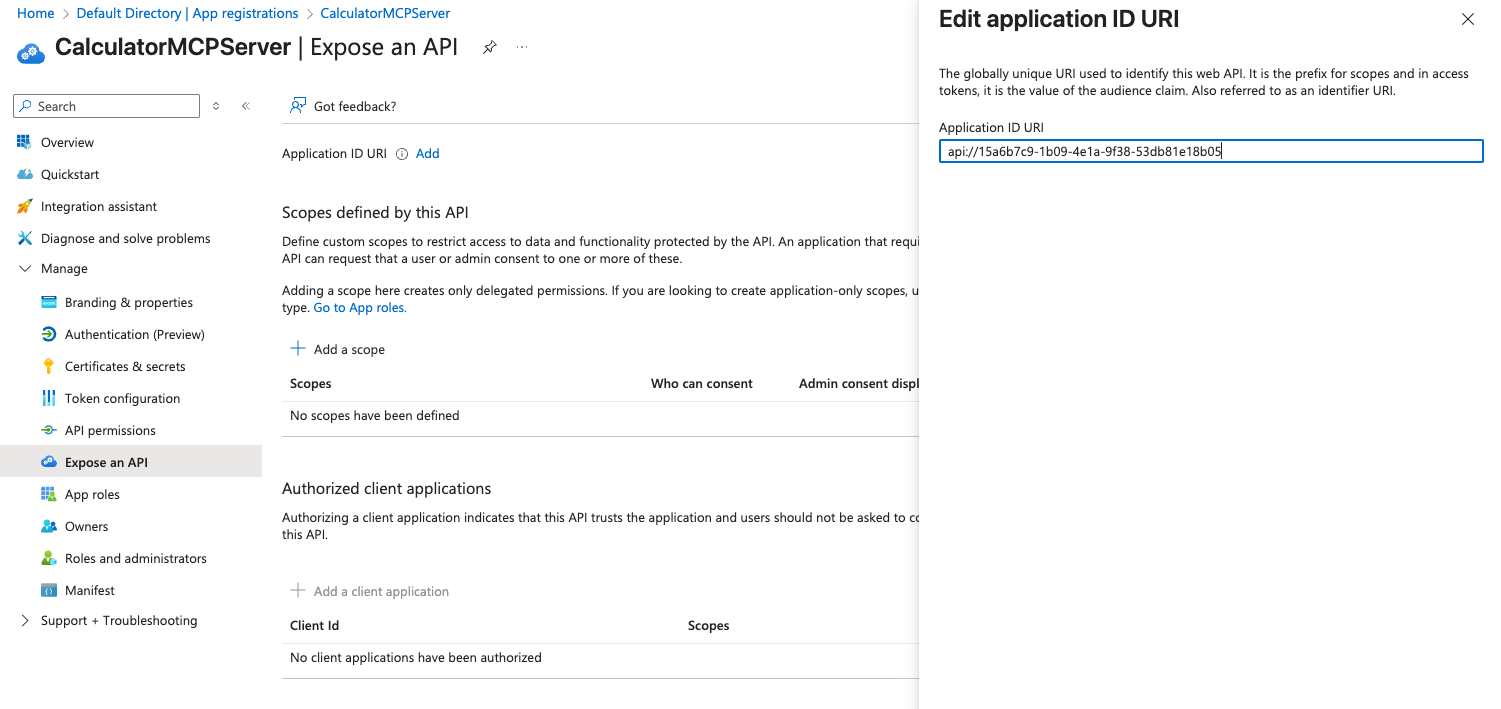

Click Add next to Application ID URI
- Azure will suggest api://{client-id} - accept this or customize it
- This URI becomes your audience value

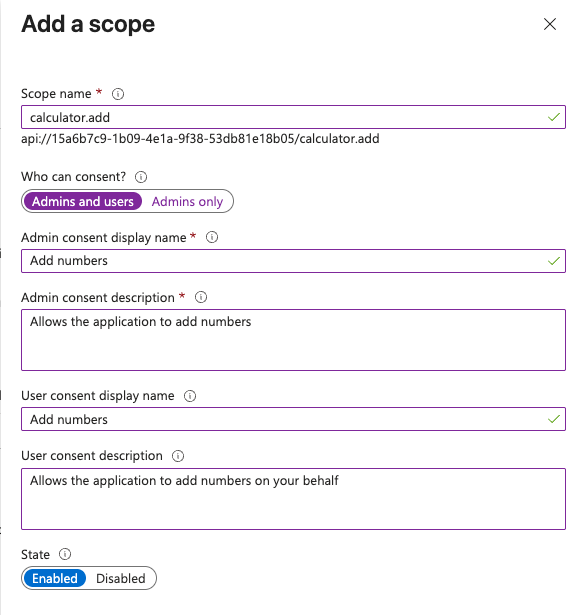

Click Add a scope to create custom scopes:
- Scope name: calculator.add
- Who can consent: Admins and users
- Admin consent display name: Add numbers
- Admin consent description: Allows the application to add numbers
- User consent display name: Add numbers
- User consent description: Allows the application to add numbers on your behalf
- State: Enabled

Click Add scope

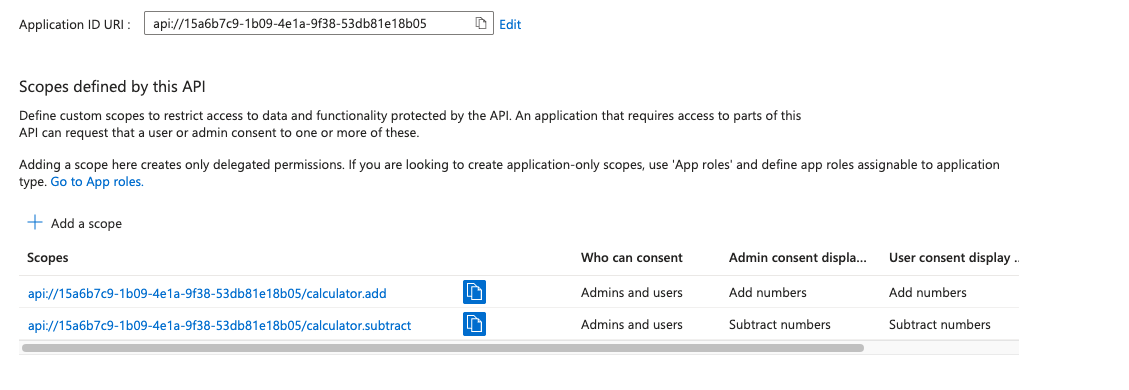

Repeat to add another scope:
- Scope name: calculator.subtract
- Configure similar display names and descriptions

Your full scope names will be in the format: api://{client-id}/calculator.add and api://{client-id}/calculator.subtract

Create a Client App Registration

This app registration represents the client application (user-facing or machine-to-machine) that will access your MCP server.

Instructions to create the client app

Navigate to App registrations > New registration
Configure:
- Name: CalculatorMCPClient
- Supported account types: Same as your API app
- Redirect URI:
  - Platform: Web
  - URI: https://<your-tfy-control-plane-url>/api/svc/v1/llm-gateway/mcp-servers/oauth2/callback
Click Register
Note the Application (client) ID - this is your OAuth Client ID

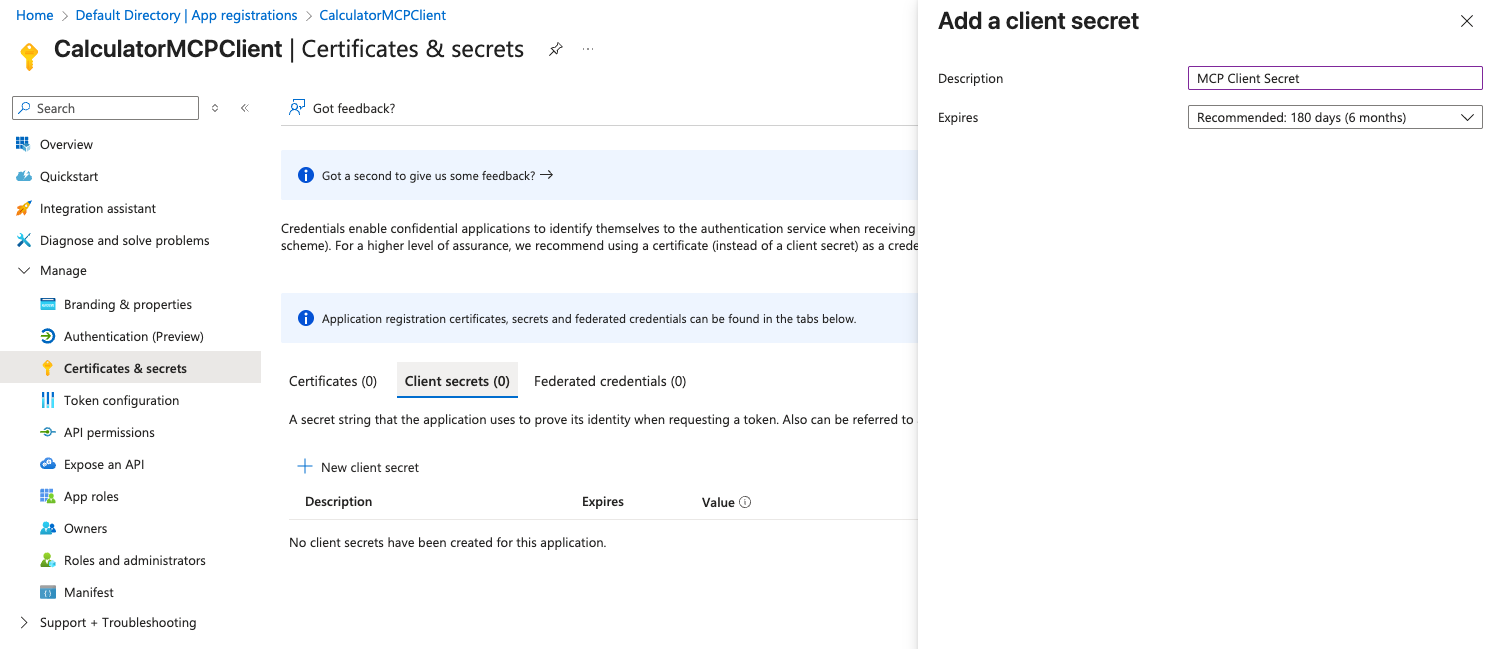

Go to Certificates & secrets
Click New client secret
- Description: MCP Client Secret
- Expires: Choose based on your security requirements

Click Add
Important: Copy the Value immediately - this is your Client Secret (it won’t be shown again)

Store the client secret securely. It cannot be retrieved after you leave this page.

Go to Authentication
Under Implicit grant and hybrid flows, ensure:
- Access tokens is checked (for user auth)
- ID tokens is checked (for user auth)
Under Advanced settings > Allow public client flows: Set to No

Grant API Permissions to the Client App

The client app needs permission to access the MCP server API. We’ll grant the scopes we defined earlier.

Instructions to grant API permissions

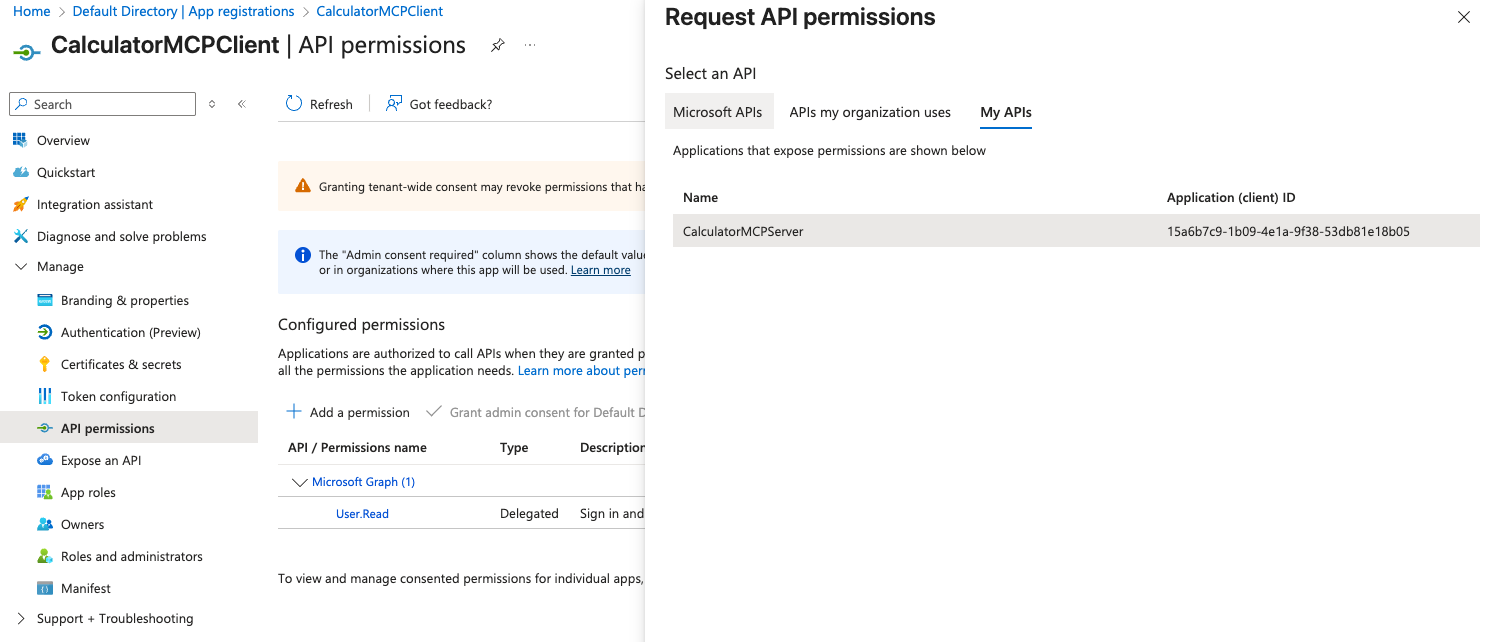

In your CalculatorMCPClient app registration, go to API permissions
Click Add a permission
Go to My APIs tab
Select CalculatorMCPServer

Select Delegated permissions (for user authentication)
Check:
- calculator.add
- calculator.subtract

Screenshot placeholder: Select permissions dialog

Click Add permissions
For machine-to-machine authentication, click Add a permission again
Select CalculatorMCPServer from My APIs
Select Application permissions
Check the same scopes:
- calculator.add
- calculator.subtract
Click Add permissions
Confirm by clicking Yes

“Grant admin consent” is required for the application permissions to work. Delegated permissions can work with or without admin consent depending on your tenant settings.

Collect Necessary Information

Gather all the configuration values needed for your MCP server and client applications.From your Azure tenant and app registrations, collect:

Variable	Example Value	Where to Find
TENANT_ID	`12345678-1234-1234-1234-123456789abc`	App Registration > Overview
OAUTH_AUDIENCE	`9876543-5678-5678-5678-987654321def`	CalculatorMCPServer > Overview > Application (client) ID
CLIENT_ID	`abcdef12-3456-7890-abcd-ef1234567890`	CalculatorMCPClient > Overview > Application (client) ID
CLIENT_SECRET	`secret_value_here`	CalculatorMCPClient > Certificates & secrets

Important: The OAUTH_AUDIENCE should be just the Application (client) ID of your CalculatorMCPServer (the API), NOT the full api:// URI. Azure tokens contain only the client ID in the aud claim.Example: Use 15a6b7c9-1b09-4e1a-9f38-53db81e18b05 instead of api://15a6b7c9-1b09-4e1a-9f38-53db81e18b05

From these values, construct:OAUTH_ISSUER: https://login.microsoftonline.com/{TENANT_ID}/v2.0OAUTH_WELL_KNOWN_URL: https://login.microsoftonline.com/{TENANT_ID}/v2.0/.well-known/openid-configurationOAUTH_JWKS_URI: Access the well-known URL and find the jwks_uri value (typically: https://login.microsoftonline.com/{TENANT_ID}/discovery/v2.0/keys)TOKEN_ENDPOINT: https://login.microsoftonline.com/{TENANT_ID}/oauth2/v2.0/tokenCUSTOM_SCOPES (for Gateway configuration):

api://{API_CLIENT_ID}/calculator.add
api://{API_CLIENT_ID}/calculator.subtract
offline_access

These custom scopes won’t appear in Azure’s well-known endpoint. You’ll need to manually enter them when configuring the MCP server in the TrueFoundry Gateway.

Store these securely - you’ll use them in subsequent steps.

Modify MCP server code to add OAuth Token verification

Create a .env file to add the environment variables and modify the server.py file to add the JWT verification.

from fastmcp import FastMCP
import os
from fastmcp.server.auth.providers.jwt import JWTVerifier
from dotenv import load_dotenv
from starlette.requests import Request
from starlette.responses import RedirectResponse

load_dotenv()

# Configure JWT verification using JWKS
token_verifier = JWTVerifier(
    jwks_uri=os.getenv("OAUTH_JWKS_URI"),
    issuer=os.getenv("OAUTH_ISSUER"),
    audience=os.getenv("OAUTH_AUDIENCE"),
)

# Bearer token authentication
mcp = FastMCP("Demo 🚀", auth=token_verifier)

# Forward .well-known/oauth-authorization-server to Azure's OpenID configuration
@mcp.custom_route("/.well-known/oauth-authorization-server", methods=["GET", "HEAD", "OPTIONS"], include_in_schema=False)
async def oauth_well_known(request: Request):
    """Redirect to Azure's OpenID configuration endpoint."""
    return RedirectResponse(os.environ.get("OAUTH_ISSUER") + "/.well-known/openid-configuration", status_code=307)

@mcp.tool
def add(a: int, b: int) -> int:
    """Add two numbers"""
    return a + b

@mcp.tool
def subtract(a: int, b: int) -> int:
    """Subtract two numbers"""
    return a - b

if __name__ == "__main__":
    mcp.run(transport="streamable-http", host="0.0.0.0", port=8000, stateless_http=True)

Replace {TENANT_ID} with your Azure tenant ID and {API_CLIENT_ID} with the Application ID of your CalculatorMCPServer app registration.Important: The audience should be just the client ID (e.g., 15a6b7c9-1b09-4e1a-9f38-53db81e18b05), not the full api:// URI. Azure tokens contain only the client ID in the aud claim.

Get the token and call the MCP server in test.py (Machine-to-Machine authentication)

In Step 1, we had a script to test the MCP server locally. After adding the OAuth token verification to the MCP server in the previous step, we need to modify the script to get the token and then call the MCP server. If you call the MCP server without a token, it will return a 401 Unauthorized error.

test.py

import asyncio
from fastmcp import Client
import requests

# Configuration
TENANT_ID = "12345678-1234-1234-1234-123456789abc"
TOKEN_ENDPOINT = f"https://login.microsoftonline.com/{TENANT_ID}/oauth2/v2.0/token"
CLIENT_ID = "abcdef12-3456-7890-abcd-ef1234567890"
CLIENT_SECRET = "your-client-secret"
SCOPE = "api://9876543-5678-5678-5678-987654321def/.default"  # Note: .default for client credentials

# Request token
response = requests.post(
    TOKEN_ENDPOINT,
    data={
        "grant_type": "client_credentials",
        "client_id": CLIENT_ID,
        "client_secret": CLIENT_SECRET,
        "scope": SCOPE
    }
)

print(response.json())
response.raise_for_status()
token_data = response.json()
access_token = token_data["access_token"]

print(f"Access Token: {access_token}")
print(f"Expires in: {token_data['expires_in']} seconds")

# Call the MCP server
async def main():
    async with Client("http://localhost:8000/mcp", auth=access_token) as client:
        tools = await client.list_tools()
        print(tools)
        result = await client.call_tool(
            name="add",
            arguments={"a": 1, "b": 2}
        )
        print(result)

asyncio.run(main())

For client credentials flow with Azure Entra ID, use the scope format api://{client-id}/.default to request all application permissions. The token will contain the short scope names (e.g., calculator.add calculator.subtract) in the scp claim, but you request them using the .default suffix.

This is exactly how you will be doing Machine-to-Machine authentication to the MCP server. Code snippets to get the token in different ways are outlined below:

Using cURL
Using Python
Using Python with MSAL

# Set your values
TENANT_ID="12345678-1234-1234-1234-123456789abc"
TOKEN_ENDPOINT="https://login.microsoftonline.com/${TENANT_ID}/oauth2/v2.0/token"
CLIENT_ID="abcdef12-3456-7890-abcd-ef1234567890"
CLIENT_SECRET="your-client-secret"
SCOPE="api://9876543-5678-5678-5678-987654321def/.default"

# Request access token
curl -X POST "${TOKEN_ENDPOINT}" \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=client_credentials" \
  -d "client_id=${CLIENT_ID}" \
  -d "client_secret=${CLIENT_SECRET}" \
  -d "scope=${SCOPE}"

Response:

{
  "token_type": "Bearer",
  "expires_in": 3599,
  "ext_expires_in": 3599,
  "access_token": "eyJ0eXAiOiJKV1QiLCJhbGc..."
}

Azure Entra ID uses scope parameter (not audience) and requires the .default suffix for client credentials flow.

import requests

# Configuration
TENANT_ID = "12345678-1234-1234-1234-123456789abc"
TOKEN_ENDPOINT = f"https://login.microsoftonline.com/{TENANT_ID}/oauth2/v2.0/token"
CLIENT_ID = "abcdef12-3456-7890-abcd-ef1234567890"
CLIENT_SECRET = "your-client-secret"
SCOPE = "api://9876543-5678-5678-5678-987654321def/.default"

# Request token
response = requests.post(
    TOKEN_ENDPOINT,
    data={
        "grant_type": "client_credentials",
        "client_id": CLIENT_ID,
        "client_secret": CLIENT_SECRET,
        "scope": SCOPE
    }
)

response.raise_for_status()
token_data = response.json()
access_token = token_data["access_token"]

print(f"Access Token: {access_token}")
print(f"Expires in: {token_data['expires_in']} seconds")

from msal import ConfidentialClientApplication

# Configuration
TENANT_ID = "12345678-1234-1234-1234-123456789abc"
CLIENT_ID = "abcdef12-3456-7890-abcd-ef1234567890"
CLIENT_SECRET = "your-client-secret"
AUTHORITY = f"https://login.microsoftonline.com/{TENANT_ID}"
SCOPE = ["api://9876543-5678-5678-5678-987654321def/.default"]

# Create MSAL app
app = ConfidentialClientApplication(
    CLIENT_ID,
    authority=AUTHORITY,
    client_credential=CLIENT_SECRET
)

# Acquire token
result = app.acquire_token_for_client(scopes=SCOPE)

if "access_token" in result:
    access_token = result["access_token"]
    print(f"Access Token: {access_token}")
    print(f"Expires in: {result['expires_in']} seconds")
else:
    print(f"Error: {result.get('error')}")
    print(f"Description: {result.get('error_description')}")

Host the MCP server and get the endpoint URL

Now that we have tested the MCP server locally, we will add it to the Gateway to enable user authentication and allow the MCP server to be accessed via the Gateway. To add the MCP server to the Gateway, we need to get the endpoint URL of the MCP server. Hence, we need to host the MCP server on a public URL.

If you are using the Truefoundry AI Deployment product, this can be done by creating a service deployment, choosing your Github repository containing the MCP server code above. Otherwise, you can host it on a VM or a Kubernetes cluster or any hosting provider of your choice.

Remember to add the environment variables for the MCP server:

Variable	Value	Description
`OAUTH_JWKS_URI`	`https://login.microsoftonline.com/{TENANT_ID}/discovery/v2.0/keys`	JSON Web Key Set URI for token verification
`OAUTH_ISSUER`	`https://login.microsoftonline.com/{TENANT_ID}/v2.0`	Azure Entra ID issuer URI
`OAUTH_AUDIENCE`	`{API_CLIENT_ID}`	Application (client) ID of your CalculatorMCPServer (API)

The MCP server only needs these environment variables to validate OAuth tokens. It doesn’t need the Client ID or Client Secret since it’s only validating tokens, not generating them.

After deployment, you will have the endpoint URL of the MCP server. Let’s consider it https://calculator-oauth-mcp-server.example.com for the rest of the steps. After deploying, check once using the test.py script above by changing the MCP server URL to the deployed URL. You should be able to fetch the tools from the MCP server.

Add the MCP server to the Truefoundry AI Gateway

You will need to have a MCP server group to be able to add the MCP server to the Truefoundry AI Gateway. Please refer to the Getting Started guide to create a MCP server group.

In your MCP Server Group, click Add MCP Server
Select Remote MCP
Configure the server:
- Name: calculator-mcp-azure-oauth
- Description: OAuth-authenticated MCP server with Azure Entra ID
- URL: Your deployed service endpoint (e.g., https://calculator-oauth-mcp-server.example.com/mcp)
- Transport: streamable-http
- Authentication Type: Select OAuth2
In the OAuth2 configuration section, provide the Azure credentials:
- OAuth2 Client ID: Your CalculatorMCPClient application client ID
- OAuth2 Client Secret: Your CalculatorMCPClient client secret

The AI Gateway will automatically discover the OAuth2 Authorization URL, Token URL, and other configuration details from your MCP server’s /.well-known/oauth-authorization-server endpoint once you provide the MCP server URL.Important - Azure Custom Scopes: Azure’s well-known endpoint only includes generic OpenID scopes (openid, profile, email, offline_access). You must manually add your custom API scopes in the OAuth2 configuration:

OAuth2 Scopes: Manually enter your scopes in the format:
- api://{API_CLIENT_ID}/calculator.add
- api://{API_CLIENT_ID}/calculator.subtract
- offline_access (to enable automatic token refresh)

Replace {API_CLIENT_ID} with your CalculatorMCPServer Application (client) ID (e.g., api://15a6b7c9-1b09-4e1a-9f38-53db81e18b05/calculator.add).You can also store the client id and secrets in truefoundry secrets and reference them by FQN in the configuration.

Set access control: Select teams or users who should have access to this MCP server

Managers of the MCP Server Group automatically have access to all servers in the group.

Click Save to add the MCP server
- The server will appear in your MCP Server Group
- Users can now connect and use the server through the AI Gateway

Test the MCP server in the Playground

Navigate to the Playground in the AI Gateway

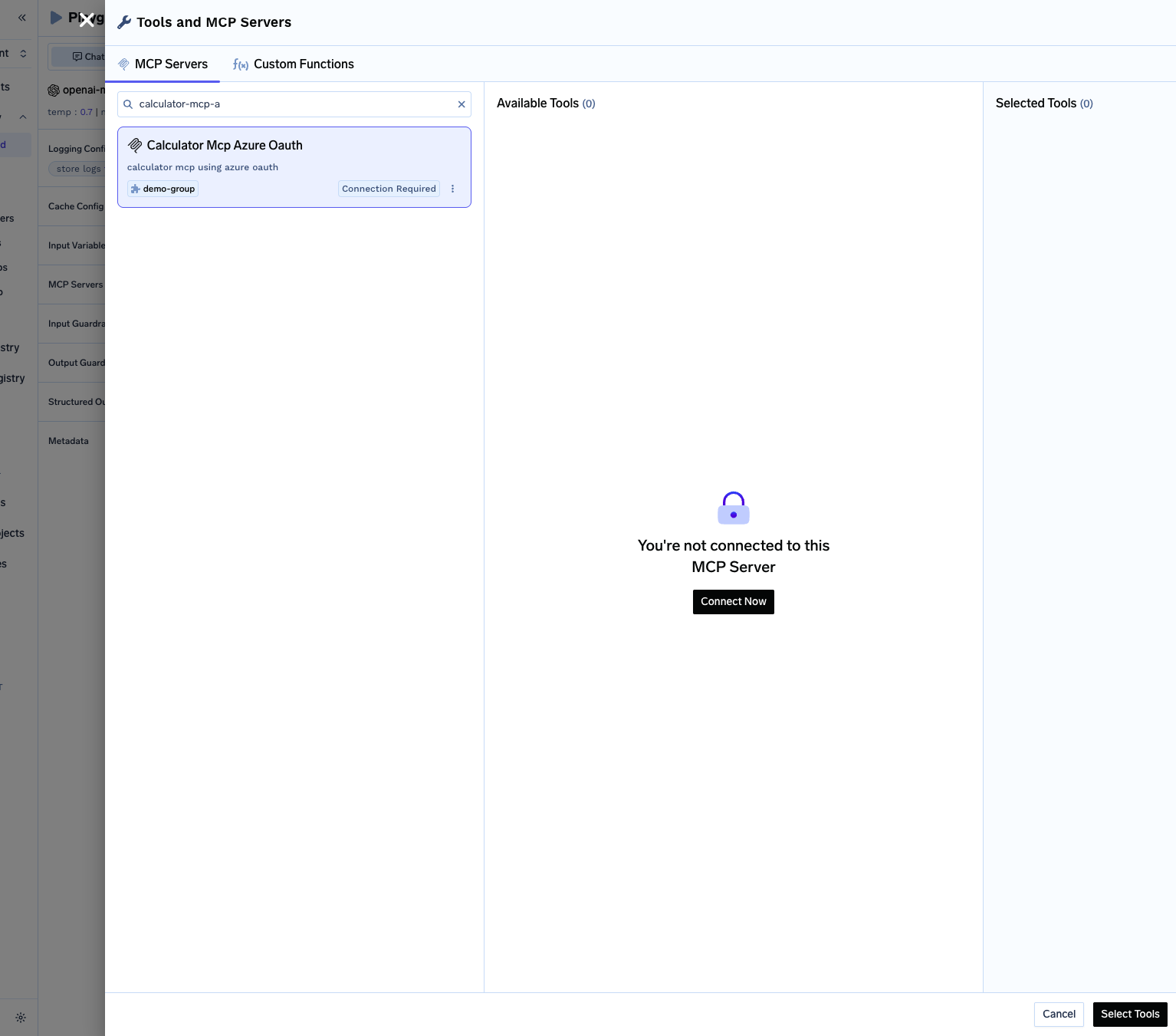

Click Add Tool/MCP Servers
Find your calculator-mcp-azure-oauth in the list
Click Connect Now to initiate OAuth authorization

You’ll be redirected to Azure to authorize access
Sign in with your Azure account and consent to the requested permissions
You’ll be redirected back to the Gateway
The AI Gateway will store your OAuth tokens securely and refresh them automatically when they expire
You’ll see the add and subtract tools from your MCP server
Select the tools and click Done

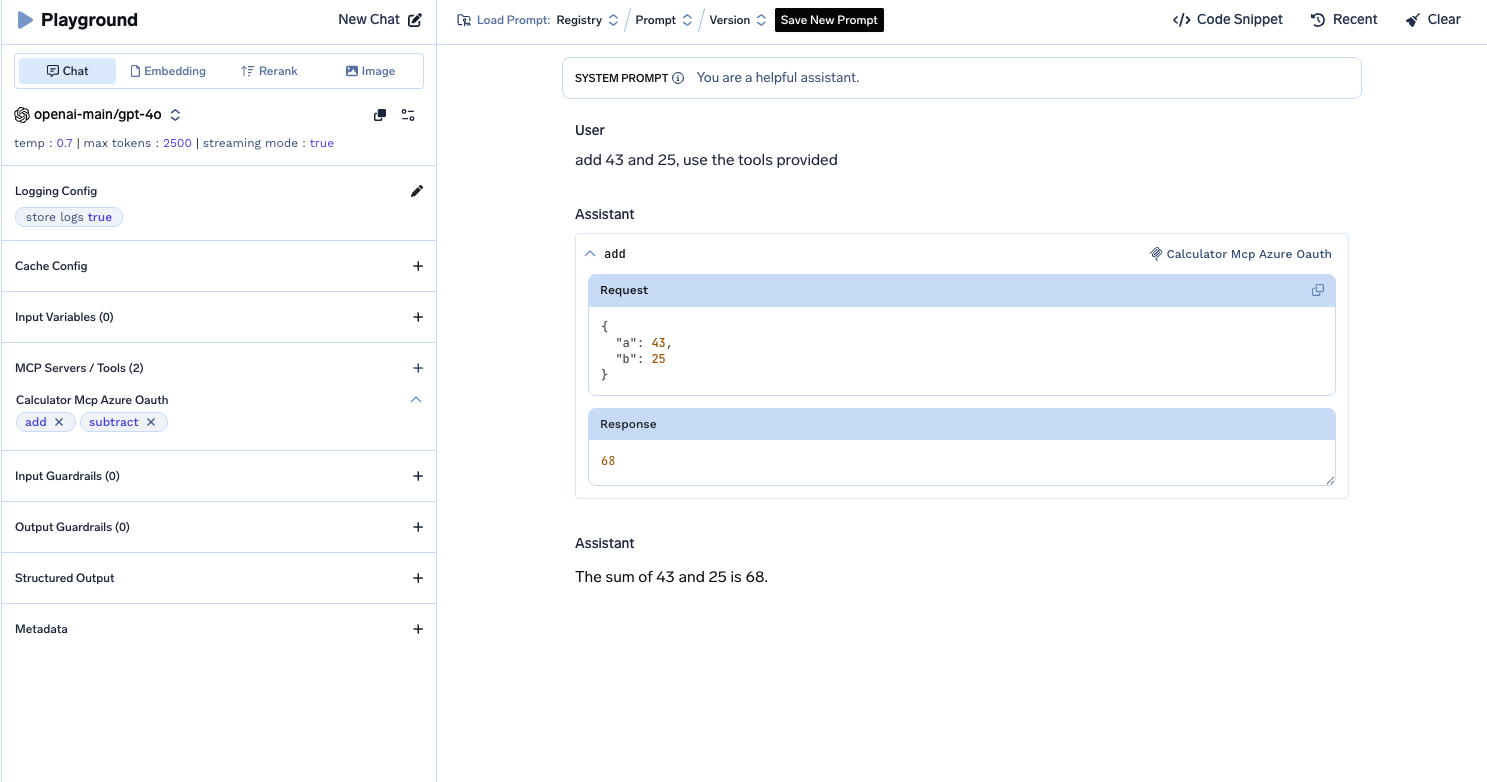

Try sending a prompt like Add 1 and 2. Use the tools provided
The tool will return the result from your MCP server

FAQ

What is Machine to Machine Authentication?

Machine to Machine Authentication is a type of authentication that allows a machine to authenticate to the MCP server without user interaction. For M2M authentication, you can use the OAuth2 Client Credentials grant type to obtain access tokens directly.

What are Application Permissions vs Delegated Permissions?

Delegated permissions: Used when a user is present. The app acts on behalf of the signed-in user. These require user consent (or admin consent).
Application permissions: Used for machine-to-machine scenarios without a signed-in user. These always require admin consent.

For the AI Gateway (user authentication), use delegated permissions. For direct API access (M2M), use application permissions.

Why use .default scope for client credentials?

When using client credentials flow, Azure Entra ID requires the .default scope format (api://{client-id}/.default). This requests all application permissions that have been pre-consented for your application. You cannot request individual scopes in client credentials flow.

Why doesn't Azure include custom scopes in the well-known endpoint?

Azure’s /.well-known/openid-configuration endpoint only returns generic OpenID Connect scopes:

openid
profile
email
offline_access

Custom API scopes (like api://{client-id}/calculator.add) are:

Defined per app registration in the “Expose an API” section
Granted per client in the “API permissions” section
Not discoverable via the well-known endpoint

This means you must manually configure custom scopes in the TrueFoundry Gateway when adding the MCP server. The Gateway cannot auto-discover them like it can with Okta’s custom authorization servers.

What's the difference between Azure and Okta OAuth?

Key differences:

Aspect	Azure Entra ID	Okta
Scopes format	`api://{client-id}/scope-name`	Custom scopes
Audience in token	Just the client ID	Full audience URI
Custom scopes discovery	Manual configuration required	Auto-discoverable
Well-known URL	`/.well-known/openid-configuration`	`/.well-known/oauth-authorization-server`

Both work with TrueFoundry AI Gateway, but Azure requires manually entering custom scopes in the Gateway configuration.

Get Started

Developer Guide

MCP Registry and Gateway

Prompt Management

Observability

Integrations

Deployment

API Reference

Chat

Agent

Embeddings

Rerank

Responses


Audio

Batch

Files

Moderations

Models

Setting up Azure Entra ID OAuth2 Authentication for MCP Servers

Guide to creating the MCP server and adding OAuth

FAQ

Get Started

Developer Guide

MCP Registry and Gateway

Prompt Management

Observability

Integrations

Deployment

API Reference

Chat

Agent

Embeddings

Rerank

Responses


Audio

Batch

Files

Moderations

Models

​Guide to creating the MCP server and adding OAuth

​FAQ

Guide to creating the MCP server and adding OAuth

FAQ
